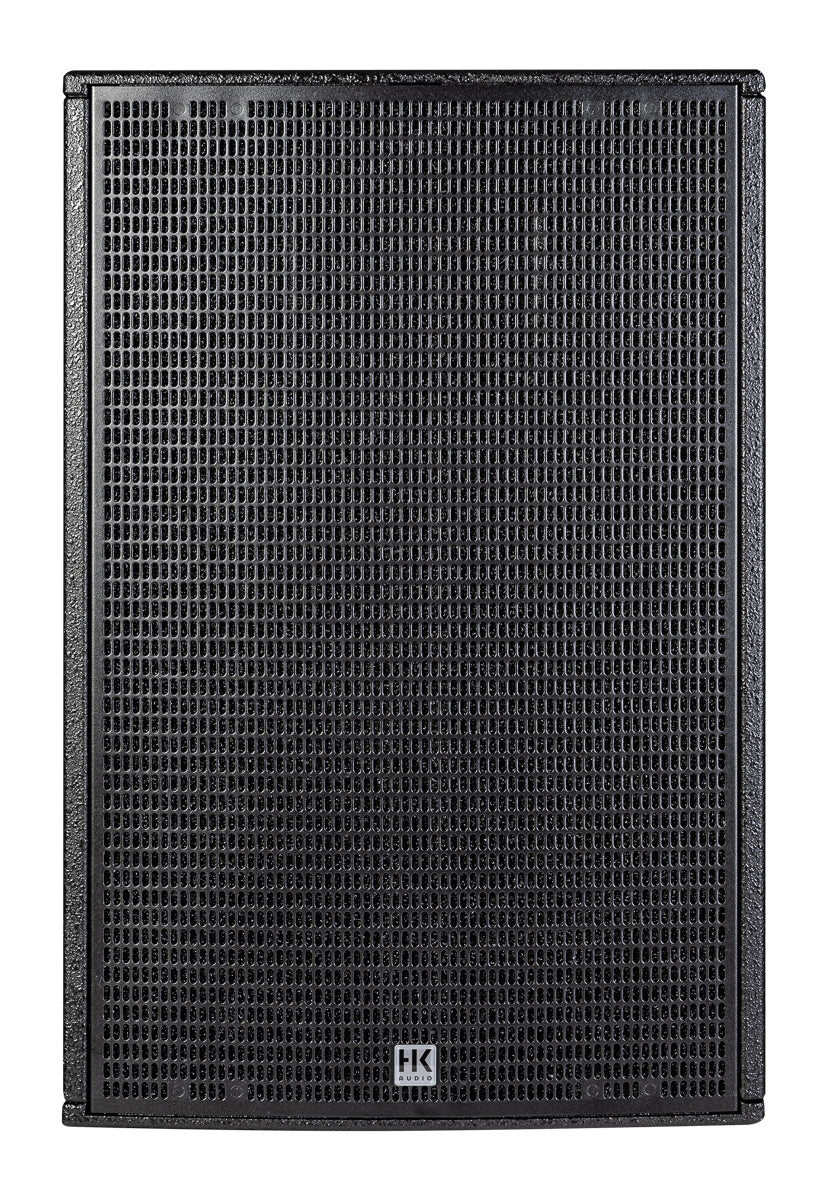

HK Audio FINEO™ FO-15-BLK - 1000W 15" Install Speaker (Black)
HK Audio FINEO™ FO-15-BLK - 1000W 15" Install Speaker (Black)
Powerful and Versatile Speaker
The FO-15 is the most powerful speaker in the FINEO product family, featuring a robust 15"" woofer with a 2.5"" voice coil. It delivers a full bass foundation without sacrificing flexibility. The constant-directivity horn with a powerful 1"" compression driver, inspired by the renowned CONTOUR X series, ensures optimal sound quality for touring applications.
Exceptional Sound Coverage
Designed for larger rooms and high sound pressure applications, the FO-15 offers crystal-clear, assertive sound with a solid bass foundation suitable for all types of speech and music. Its 80° x 60° dispersion angle can be rotated 90°, allowing for versatile mounting options, whether upright, lying on its side, or suspended.
Key Features
- Passive 2-way mid/high unit with bass reflex cabinet principle.
- Power handling: RMS 500 W, program 1000 W, peak 2000 W.
- Nominal impedance: 8 ohms for reliable performance.
- Max SPL average: 122 dB at 1 m with 10% THD (80 Hz - 20 kHz).
- Max SPL peak: 126 dB at 1 m with 10% THD (580 Hz).
- Sensitivity: 95 dB (1 W/1 m, 80 Hz - 20 kHz).
- Crossover frequency: 2.4 kHz for optimal sound integration.
- IP protection class: Not specified.
Specifications
- Frequency range -6 dB: 64 Hz - 20 kHz
- Frequency range -10 dB: 61 Hz - 20 kHz
- Dispersion angle -6 dB: 80° x 60° (horizontal x vertical)
- Ball impact resistance: Certified (MPA University Stuttgart)
- Low-/mid frequency: 1x 15"" Sica cone speaker with ferrite magnet and 2.5"" voice coil.
- High frequency: 1 x 1"" Sica compression driver with ferrite magnet and 1"" voice coil.
- Crossover: High pass: 18 dB/octave, low pass: 12 dB/octave.
- High frequency protection circuit: Self-healing PTC fuse.
- Horn: BEM-optimized constant directivity horn, rotatable.
- Connections: 1 x NL4 Speakon input, 1 x NL4 Speakon output (parallel).
- Pin assignment: 1+/- (input/parallel output), 2+/- (wired through).
- Cabinet material: MDF with 1-component acrylic enamel finish.
- Color options: Jet black (RAL 9005), signal white (RAL 9003), or special color as per catalog.
- Front grille: Steel with anticorrosive coating and acoustic foam backing.
- Mounting points: 2 x M8 lateral, 2 x M8 bottom/lid, 1 x M8 rear, 4 x M6 rear.
- Optional accessories: U-bracket, screw-on flange SF-35, swivel and tilt wall mount (size L for VESA MIS-E, 200 x 200 mm).
