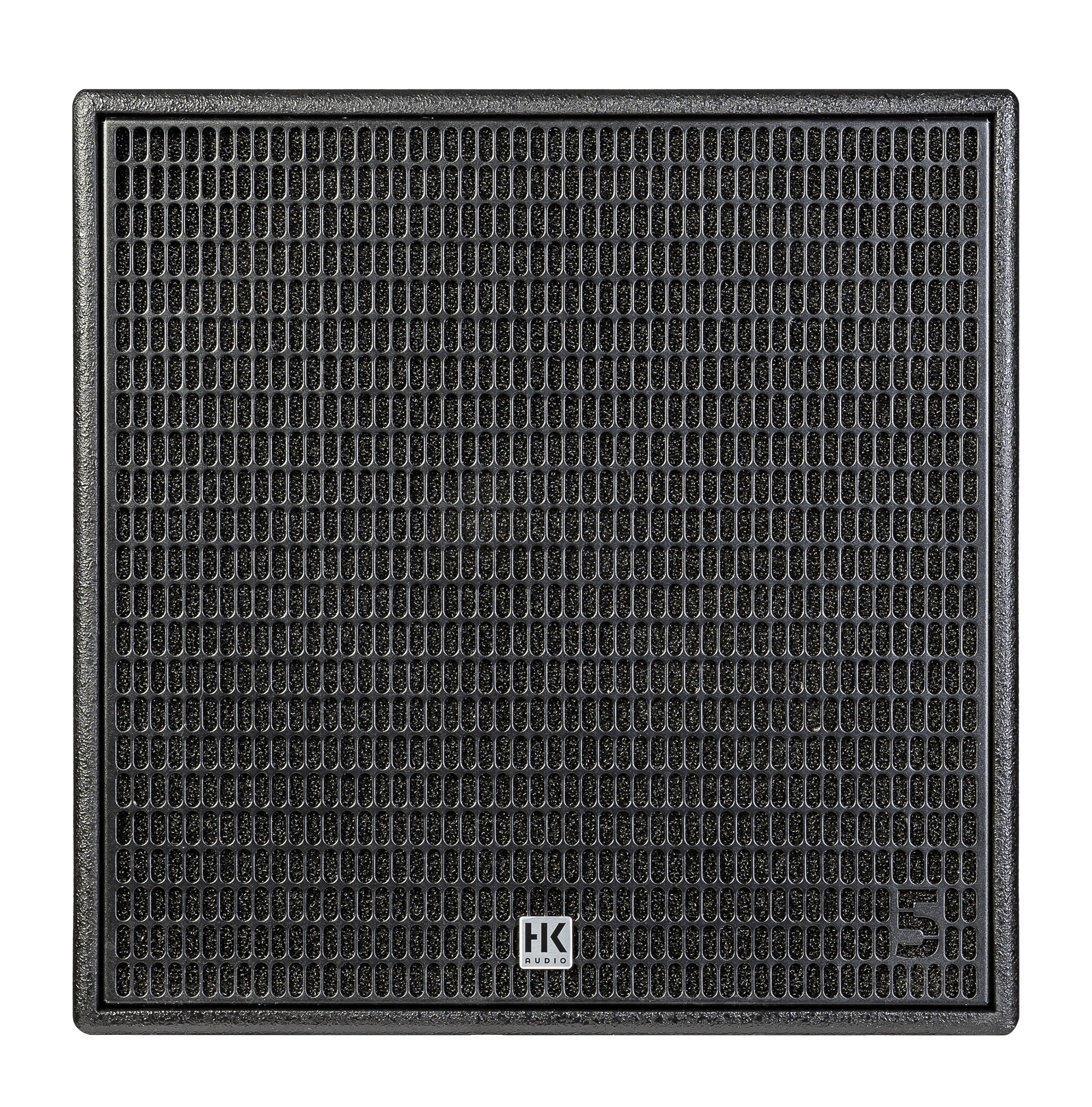

High-Performance Bass Reflex Subwoofer
The HK Audio LINEAR 5 MK2 118-SUB-A is a powerful birch multiplex bass reflex subwoofer designed to deliver exceptional sound pressure. With its robust construction and advanced technology, this subwoofer is perfect for enhancing low-frequency performance in any audio setup.
Unmatched Sound Pressure Levels
Featuring impressive specifications, this active subwoofer is engineered to handle the demands of professional audio applications, providing deep and powerful bass that complements your sound system.
Key Features
- 1 x 18” woofer with a 4” voice coil for robust bass response.
- Class D amplifier delivering a power output of 1,000 W RMS / 2,000 W peak.
- Frequency response down to 42 Hz for impactful low-end reproduction.
- Analog inputs with dual XLR combo balanced connections for versatile connectivity.
- Filter presets including Front, Cardioid vertical, and Cardioid horizontal for optimal sound management.
Specifications
- Max. SPL @ 10% THD: 129 dB half space (42 Hz – 100 Hz averaged)
- Max. SPL Peak @ 10% THD: 131 dB half space
- Frequency response +/-3 dB: 42 Hz – X-over
- Frequency response -10 dB: 38 Hz – X-over
- Power amp output (RMS/Peak): 1,000 / 2,000 W
- Amp type: Class D
- Maximum input level: 20 dBu
- Analog inputs: 2 x XLR combo balanced
- Analog Thru: 2 x XLR balanced
- DSP Out: 1 x XLR balanced
- Network port: EtherCON RJ45, 1 x In, 1 x Thru
- Remote software: DSP CONTROL (Windows, Mac OS)
- DSP functions: Fully parametric 10-band EQ, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 48 kHz
- System latency: Less than 2 ms
- Mains connection: 1 x IEC connector with V-Lock securing system, 100-240 V
- Power consumption: 1.9 A / 100–240 V nominal according to EN 62368-1
- Pole mount: 1 x M20
- Carrying handles: 2 x MultiGrip
- Housing: Birch multiplex
- Finish: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 55 x 56 x 68.5 cm (21-21/32 x 22-3/64 x 26-31/32"")
- Weight: 41.6 kg / 91.71 lbs
