Dynamic 15"" Active Speaker

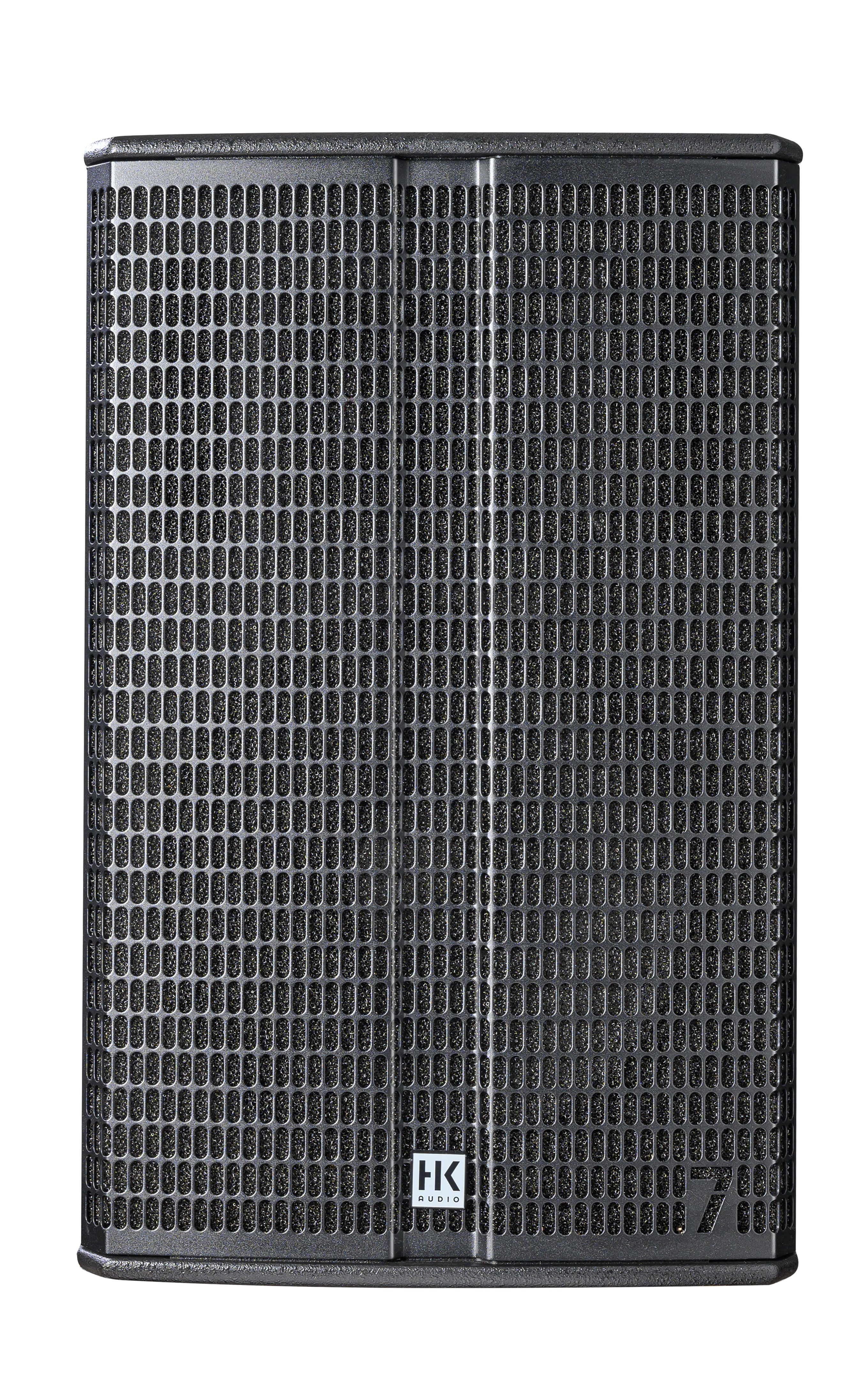

The HK Audio LINEAR 7 115 FA is an active, network-compatible full-range speaker that delivers exceptional sound pressure in the low-frequency range. Thanks to its larger cabinet volume and optimized Bass Boost preset, this speaker provides tailored low-frequency enhancement for any performance setting.
Enhanced Low-Frequency Performance
Designed for versatility, the LINEAR 7 115 FA features a Bass Boost preset optimized for each speaker, allowing you to easily boost the low-frequency range as needed.
Key Features
- 1 x 15” low/mid speaker with a 3” voice coil for powerful bass response.
- Class D amplifier with peak power output of 2000 W for robust audio delivery.
- Active crossover frequency at 1.5 kHz with FIR X-over and 60 dB/octave for seamless sound integration.
- Rotatable 60° x 40° CD horn for optimal sound dispersion.
- Remote software control through DSP CONTROL for precise audio adjustments.
Specifications
- Max. SPL @ 10% THD: 129 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10% THD: 134 dB half space
- Frequency response +/-3 dB: 57 Hz – 19 kHz
- Frequency response -10 dB: 54 Hz – 20 kHz
- Amp type: Class D - biamped
- HF driver: 1” with a 1.7” voice coil
- Maximum input level: +20 dBu
- Analog inputs: 1 x XLR combo balanced
- Analog Thru: 1 x XLR balanced
- DSP Out: 1 x XLR balanced
- Network port: Ethercon RJ45, 1 x In, 1 x Thru
- Filter presets: Flat, Boost, Low Cut, Remote
- Sample rate: 96 kHz
- System latency: Less than 2.6 ms
- Mains connector: 1 x Powercon NAC3 In, 100–240 V
- Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
- Clustering angle: 60°
- Pole mount: DuoTilt 3°/7°
- Rigging points: 4 x M8 (AP-8)
- Carrying handles: 2 x MultiGrip
- Housing: Hybrid (birch multiplex/MDF)
- Finish: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 45 x 71 x 45 cm (17-23/32 x 27-61/64 x 17-23/32"")
- Weight: 32 kg / 70.5 lbs
