Professional 12"" Active Monitor

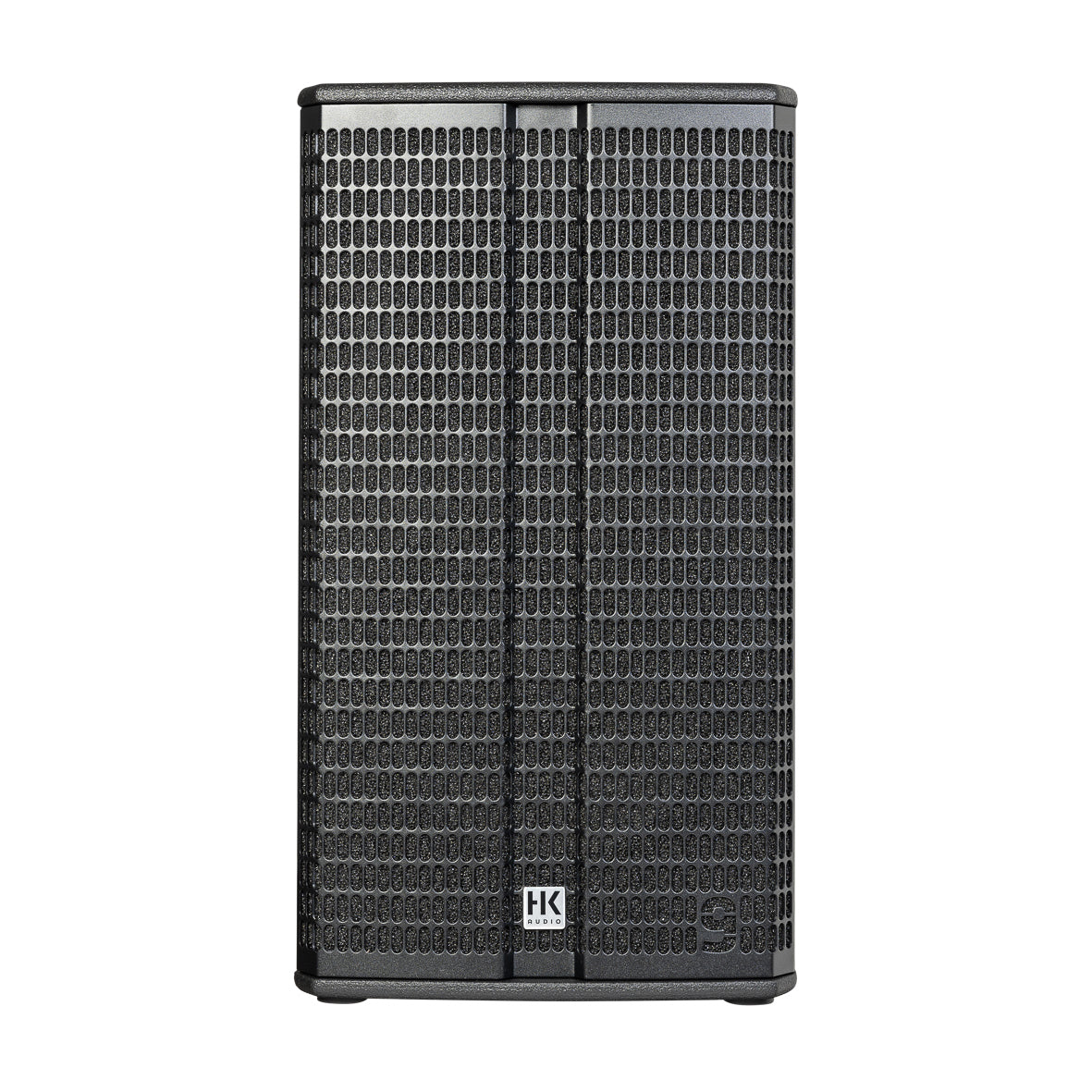

The HK Audio LINEAR 9 112-XA is an advanced active monitor designed to deliver high-quality sound with exceptional clarity. With its optimized dispersion angle and versatile rigging options, this speaker is ideal for various performance environments.
Optimized Dispersion and Coverage
Engineered with a dispersion angle of 70° x 50°, the LINEAR 9 112-XA offers medium sound coverage depths, ensuring that your audio reaches every corner of the room.
Key Features
- 1 x 12” low/mid speaker with a 2.5” voice coil for robust audio reproduction.
- Class D amplifier with a power output of 700 W RMS for powerful performance.
- Active crossover frequency of 1.6 kHz with FIR X-over and 60 dB/octave.
- Multiple rigging points for flexible installation options, including the TB-28N tilt bracket.
- Remote software control through DSP CONTROL for precise sound adjustments.
Specifications
- Max. SPL @ 10% THD: 128 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10% THD: 131 dB half space
- Frequency response +/-3 dB: 67 Hz – 19 kHz
- Frequency response -10 dB: 62 Hz – 20 kHz
- Amp type: Class D - biamped
- LF driver: N/A
- HF driver: 1” with a 1.7” voice coil
- Horn directivity: 70° x 50° CD horn, rotatable
- Maximum input level: +20 dBu
- Analog inputs: 1 x XLR combo balanced
- Analog Thru: 1 x XLR balanced
- DSP Out: 1 x XLR balanced
- Network port: Ethercon RJ45, 1 x In, 1 x Thru
- Filter presets: Flat, Monitor, Low Cut, Remote
- Sample rate: 96 kHz
- System latency: Less than 2.6 ms
- Mains connector: 1 x Powercon NAC3 In, 1 x Powercon NAC3 Thru, 100–240 V
- Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
- Angles up (Monitor angle): 30°
- Pole mount: DuoTilt 3°/7°
- Rigging points: 5 x M8 (AP-8)
- Carrying handles: 1 x SingleGrip, 1 x MultiGrip
- Housing: Birch multiplex
- Finish: PU coating black
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 37 x 67 x 31 cm (14-9/16 x 26-3/8 x 12-13/64"")
