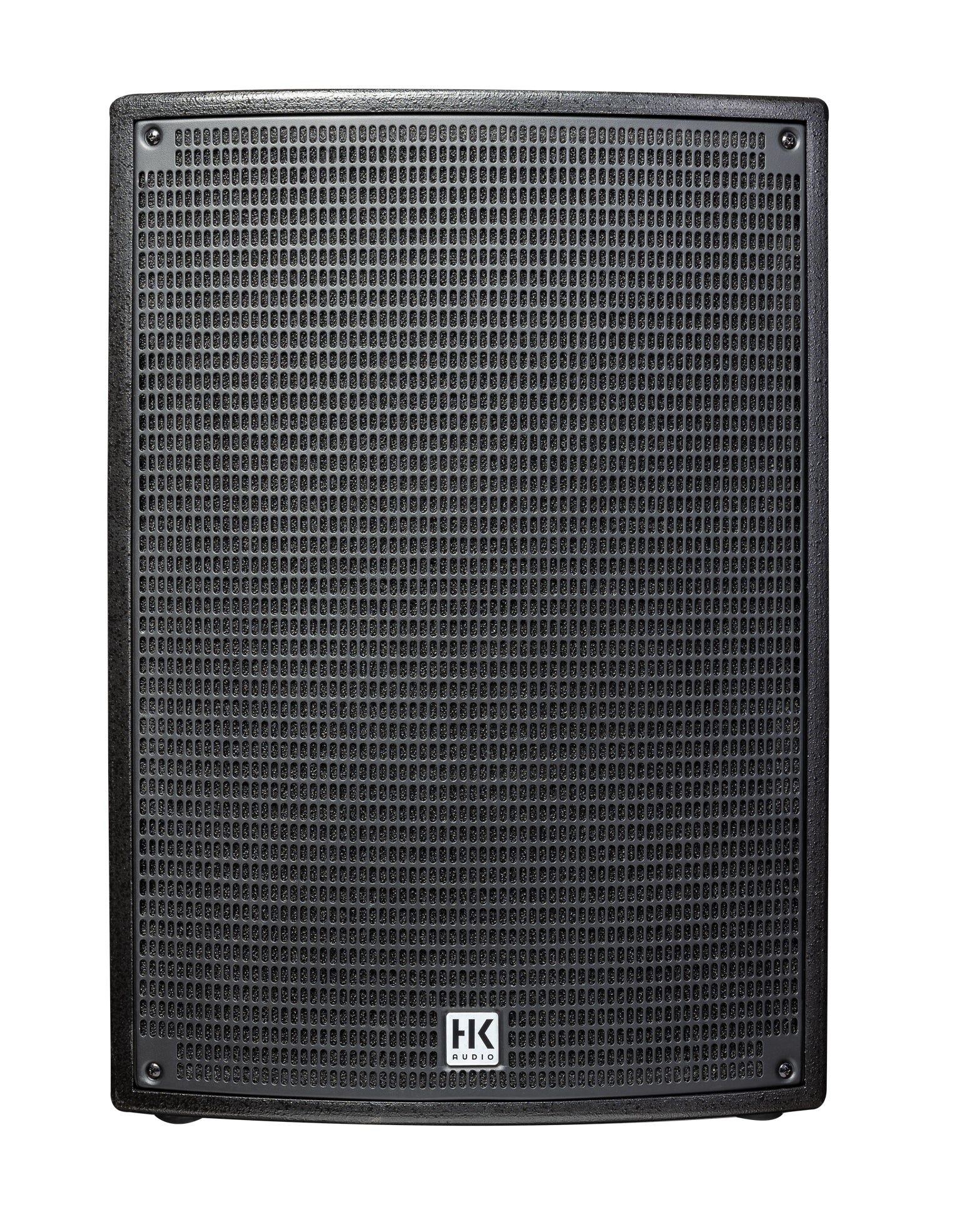

HK Audio SONAR™ 115-SUB-D - 1500W 15" Powered Subwoofer
The HK Audio SONAR 115-SUB-D is a high-performance powered subwoofer designed to extend the bass response of SONAR full-range models and other speaker types. Equipped with a powerful 15"" woofer and a 1500-watt power amplifier, this subwoofer provides an impressively powerful bass experience that enhances any audio setup. The SONAR 115-SUB-D features a 24-bit DSP with an illuminated LCD screen, allowing for convenient adjustments to crossover frequency, polarity, and delay. One of its standout features is the innovative Cardioid function, which minimizes problematic rear bass radiation through pre-configured CARDIOID FRONT and CARDIOID REAR presets, previously only available in higher-priced models.
Exceptional Bass Performance
With a maximum SPL of 125 dB at 10% THD and a frequency response of 36 Hz to the crossover point, the SONAR 115-SUB-D delivers deep and impactful low-frequency sound. Its 15"" woofer, featuring a 3"" voice coil, ensures that every note is reproduced with clarity and power, making it ideal for various audio applications.
Advanced DSP Control
The built-in 24-bit DSP provides enhanced control over your sound. The illuminated LCD screen makes it easy to adjust settings for optimal performance. Choose between different sound modes, such as Normal and Bass Boost, to tailor the audio output to your preferences.
Robust and Portable Design
Constructed from durable wood and finished in black, the SONAR 115-SUB-D is built to withstand the demands of live performances. It features multiple carrying handles for easy transport and can be mounted using a single M20 pole mount. With dimensions of 43 x 61.2 x 61.6 cm and a weight of 28.4 kg, this subwoofer is both powerful and portable.
Key Features
- Powerful 15"" woofer with a 3"" voice coil for deep bass
- Peak power output of 1500 W and max SPL of 125 dB for impactful sound
- 24-bit DSP with illuminated LCD for easy adjustments
- Cardioid feature to minimize rear bass radiation
- Multiple audio inputs and outputs for versatile connectivity
- Durable wood housing with a protective metal grille
Specifications
- Max SPL Peak @ 10% THD: 125 dB (half space)
- Frequency Response -10 dB: 36 Hz – X-over
- Amplifier Output (Peak Power): 1500 W
- Woofer: 1 x 15"", 3"" voice coil
- Display: LCD
- Audio Inputs: 2x XLR/jack combo balanced
- Audio Outputs: 2x XLR thru out balanced
- Sound Modes: Normal/Bass Boost
- Setup Modes: SONAR, Cardioid Front, Cardioid Rear
- Delay: 0-10 meters
- Pole Mount: 1x M20
- Carrying Handles: 2x MultiGrip
- Housing: Wood
- Finish: Black
- Front Grille: Metal grille backed with black acoustic foam
- Dimensions (WxHxD): 43 x 61.2 x 61.6 cm
- Weight: 28.4 kg / 62.6 lb
